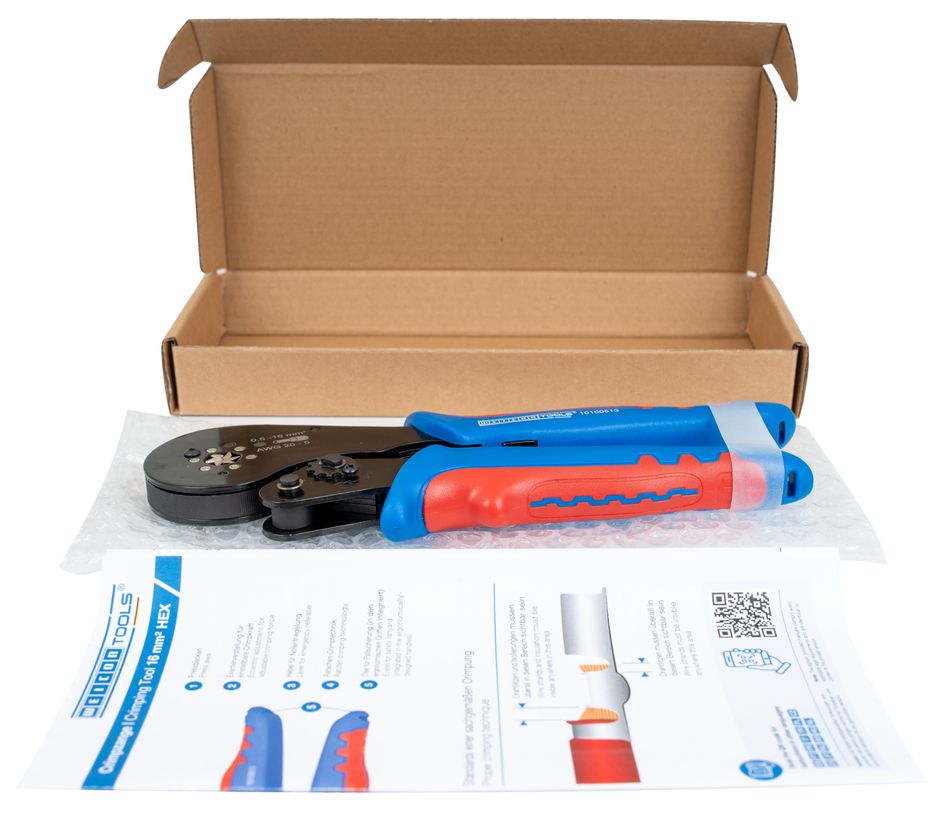

WEICON Crimp tool 16mm² HEX (HEX-CRIMP 16 mm²)
Weicon (Germany)
Pickup available at 1092 Lower Delta Road
Usually ready in 4 hours
Shipping & Delivery
For orders within Singapore
Up to $180: $25
Above $180: Free Delivery
Delivery to restricted areas have additional charges.
For orders outside Singapore
We can arrange a forwarder pickup for your goods. Taxes, duties and other expenses paid during transport is borne by the customer. Contact us for special shipping and delivery arrangements.

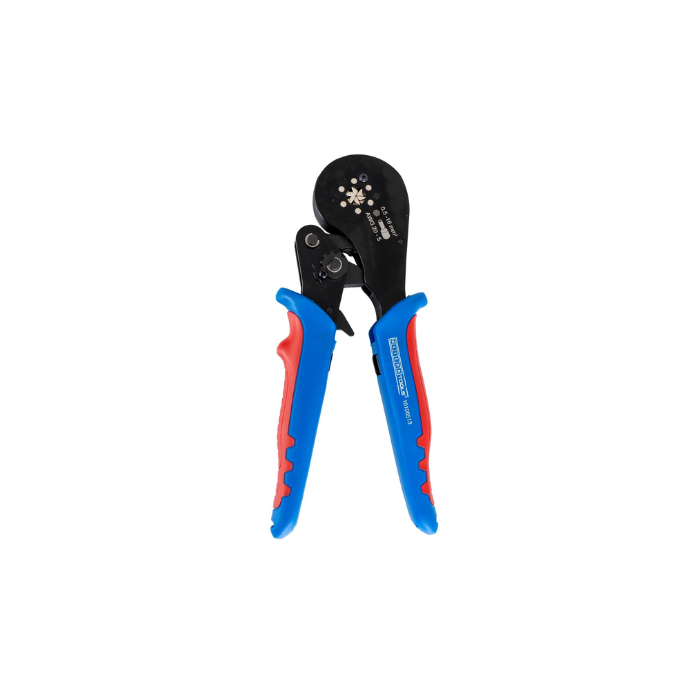

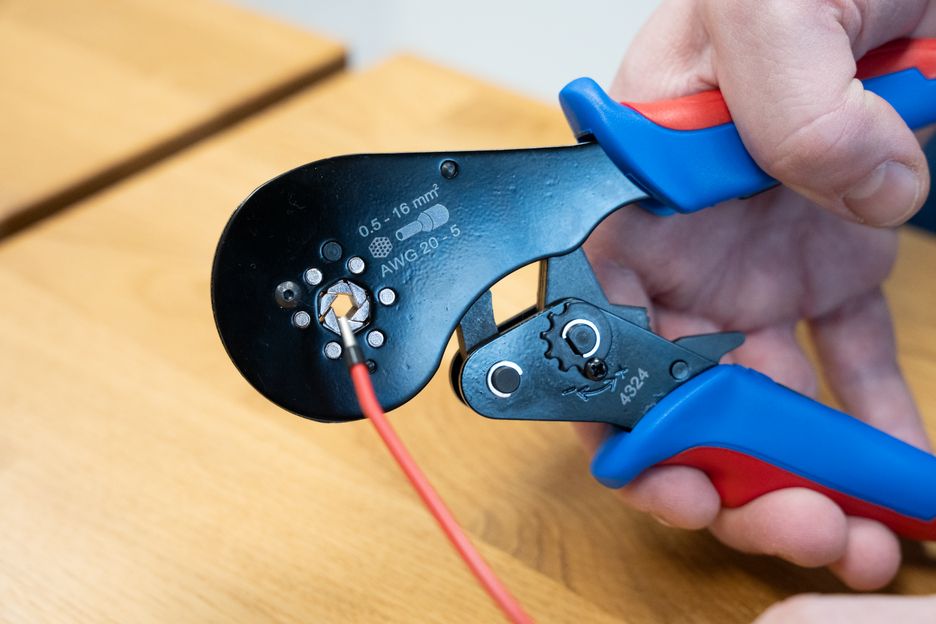

The WEICON HEX-CRIMP 16 mm² is a professional crimping tool designed for process-safe crimping of wire end ferrules, producing a hexagonal crimp that helps ferrules insert cleanly into round terminals. It uses a ratchet mechanism with a blocking device to ensure consistent results and only releases once the crimp cycle is completed. An integrated emergency release supports safe recovery if the tool is misused, while an eccentric adjustment allows fine tuning of the crimping force for repeatable, reliable electrical connections.
Key features
-

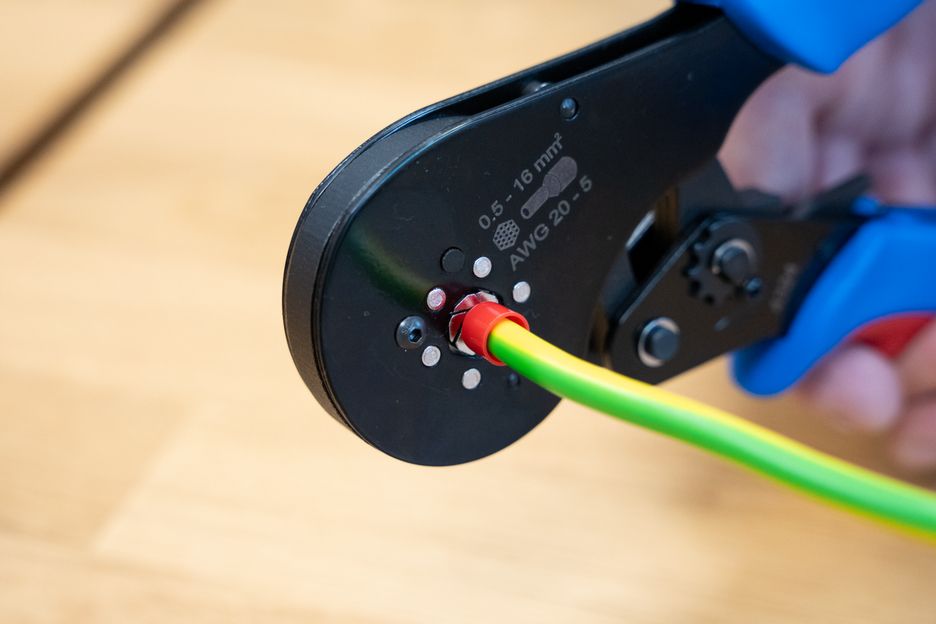

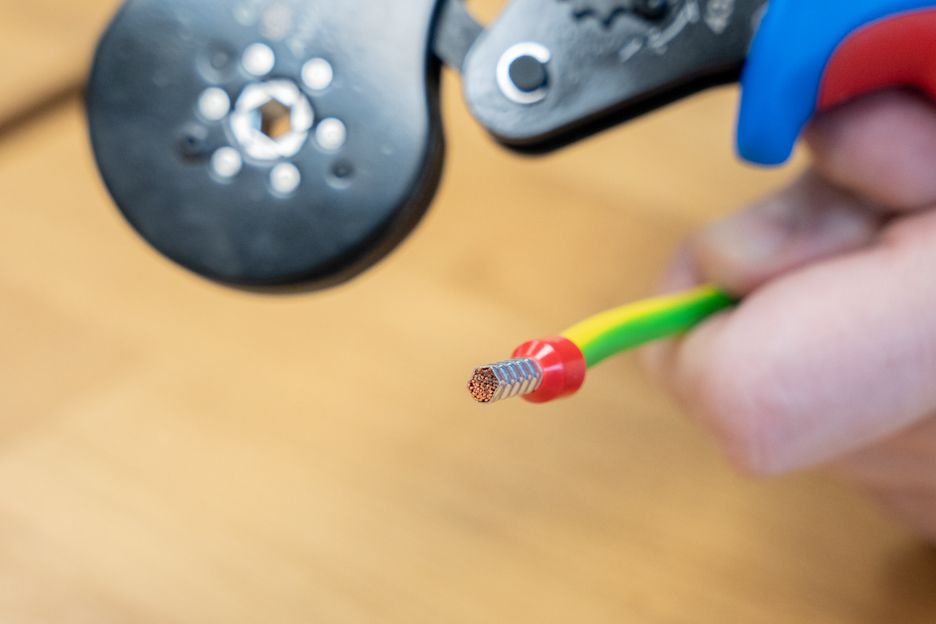

Hexagonal crimp profile for easier insertion into round terminals
-

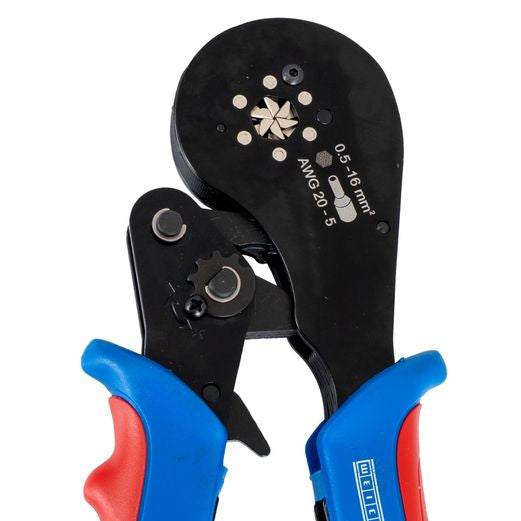

Working range: 0.5–16 mm² (AWG 20–5)
-
Ratchet with blocking device (tool opens only after completed crimp)
-
Emergency release built into handle
-
Serrated dies, multi-hardened carbon steel (durable, stable crimp)
-
2-component handles (non-slip, ergonomic grip) + handle eyelets for safety lanyard
-
Standard: suitable for ferrules to DIN 46228 Part 1 + 4
Dimensions / material
-
Length: 222 mm
-
Weight: 586 g
-
Body material: carbon steel, painted black
Safety note
-
Not to be used on live cables or conductors.
Frequently Asked Questions
Weicon Hex Crimp Tool
Why is the die profile important in a crimp?
The die profile is important because it shapes how the connector is compressed—using the correct profile gives the right contact area, grip strength, and crimp dimensions, while the wrong profile can cause high resistance, overheating, loose connections, or damaged strands.
Why are hexagonal crimps used?
Hex crimps are used mainly for compression terminations like cable lugs, splices, and wire ferrules, where you need a strong, reliable 360° crimp—common in power distribution, industrial wiring, and control panels.
Why is a good crimp important?
A good crimp is important because it creates a secure, low-resistance connection and a strong mechanical bond, helping prevent overheating, loosening, and electrical failures over time.
